Twisted and Clapton coils and heaters - complex wire builds for intense flavour
Twisted and Clapton coils are advanced heating constructions that use wire-wrapping techniques to create complex formations with a significantly larger heating surface than simple round wire. The most popular types are Clapton (thin wire wrapped around a thicker core, like a guitar string), fused Clapton (two or more cores wrapped by a single thin outer wire), alien (intricate wave-pattern wrappings) and numerous other exotic configurations.
Twisted coils for e-cigarettes produce more intense flavour and more vapour than simple wire coils through the greater metal surface in contact with the saturated cotton — every groove and recess between wraps creates additional liquid capillaries and additional vaporisation points.
Twisted coil builds - construction and advantages over simple wire
Twisted coils are available as ready-made prefabricated coils for quick installation in rebuildable atomizers or as raw wire on spools for hand-winding. Clapton coils as the simplest twisted construction deliver a noticeable flavour improvement over plain wire — the thin outer wrapping creates additional recesses that hold more liquid and increase vaporisation surface. Fused Clapton with multiple cores produces even more vapour and flavour through increased metal mass and surface area.
Alien and more exotic builds are the territory of enthusiasts chasing aesthetics and maximalism — they perform excellently, but the difference over fused Clapton is subtle, largely the visual satisfaction of a complex build. These coil builds require higher wattages than simple wire coils due to greater metal mass — a Clapton may need 40–60 W where a plain coil ran at 25 W, trading more intense performance for faster battery and liquid consumption.
Twisted coils - installation and operating parameters
Installing twisted coils in rebuildable atomizers requires basic hands-on experience — place the prefabricated coil between the deck posts, tighten the screws, thread the cotton and tuck the tails into the liquid channels. The process is identical to plain coils, except that twisted coils are thicker and heavier, requiring firmer clamping. Before first use, dry fire at low wattage without cotton to check that the coil glows evenly from the inside out — uneven glow means small corrections are needed by squeezing or stretching the wraps.
Twisted coils often read lower resistance than expected due to higher metal mass — a fused Clapton can sit at 0.15–0.25 Ω, requiring a regulated mod with a capable battery. Always verify resistance before vaping — most mods have built-in protections, but it's worth confirming, especially with exotic builds at very low resistance values.
Twisted coils - lifespan and practical considerations
Twisted coils last longer than simple wire coils with regular maintenance — the greater metal mass is more resistant to deformation and cracking. Cleaning every few days through dry firing and brushing removes accumulated residue; the grooves between wraps trap more fouling than plain wire, so more frequent cleaning is necessary to maintain clean flavour. With proper maintenance, twisted coils can run 3–5 weeks before needing replacement — considerably longer than plain wire coils that typically require changing every two weeks.

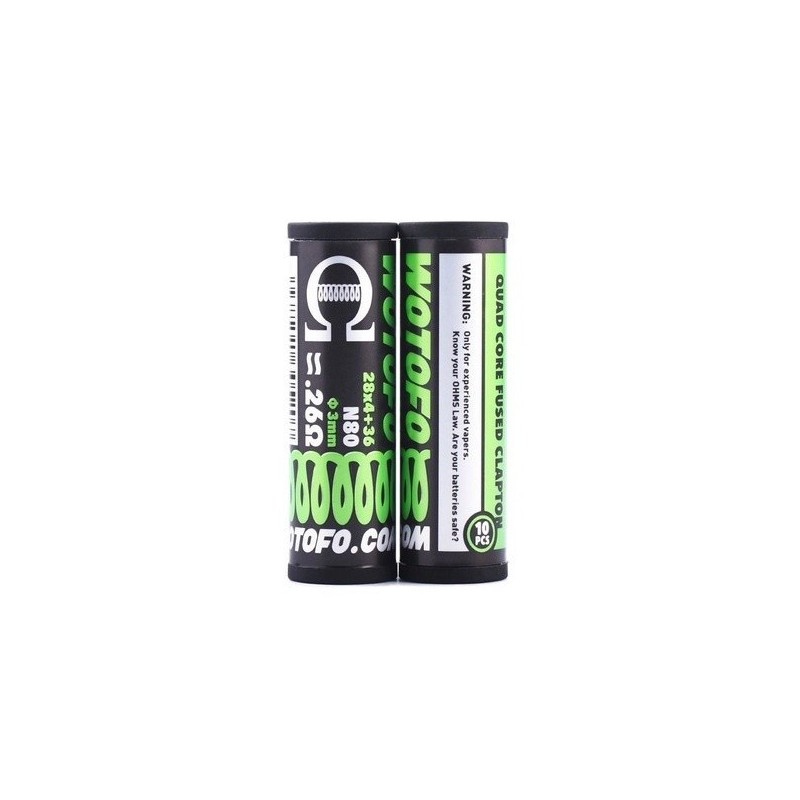

Ready-made prefabricated twisted coils are an efficient option saving build time while guaranteeing consistent quality. Spool material for hand-winding is the most economical route for experienced builders available at Eliqvapoteur — one Clapton spool covers dozens of builds, delivering significantly better flavour than plain wire at a comparable cost per coil.
FAQ - twisted and Clapton coils - common questions
Are twisted coils suitable for beginners?
It's better to start with simple wire coils and move to twisted builds once you've got the basics down. Twisted coils require higher wattages, stronger batteries, more precise installation and more frequent cleaning. If you're new to rebuildable atomizers, learn on standard 26 AWG Kanthal — master winding, cotton installation and safety fundamentals first. After a month of experience, prefabricated Clapton coils are a natural next step: straightforward to install and a noticeable flavour reward for having learned the basics.
Why do twisted coils need higher wattages?
Greater metal mass requires more energy to heat. Simple thin-wire coils ramp up quickly at low wattages; twisted builds with thicker cores and multiple outer wraps need significantly more power to reach operating temperature. A Clapton may need 40–60 W, a fused Clapton 60–80 W, more exotic builds sometimes 80–100 W. Higher wattages mean faster battery drain — instead of a full day on a single charge, you may need to top up after a few hours of heavy use. Liquid consumption also increases — more vapour means more e-liquid vaporised per draw.
How do you clean twisted coils to extend their lifespan?
Every 3–5 days, remove the cotton and dry fire the coil at low wattage until it glows. Let it cool and scrub with a soft brush — work the bristles into the grooves between the wraps to remove accumulated residue. You can also rinse under warm (not hot) running water while the coil is still slightly warm — steam effect helps dislodge additional fouling. Dry thoroughly before installing fresh cotton. Regularly cleaned twisted coils can run a month or longer — neglected ones need replacing within a week once residue completely clogs the grooves and the flavour turns burnt despite cleaning.
